Instruments

[Bruker Avance III HD 600MHz] [Bruker AvanceIII 500MHz] [Bruker Avance III HD 400MHz]

The instruments are located in two buildings. The 500 and 300 are in room 335 of the Chemistry Building, and the 400 and data processing computer are in room 151 of the Physical Sciences Building. Both rooms remain locked at all times, each research group receives a group key which must be shared by the authorized users. If you are intersted in becoming a user, please see training.

Important note: The temperature limits in the tables below are hardware specifications. All of our instruments are hooked up to compressed air as opposed to nitrogen. Running at extreme low or high temperatures can damage the probe. Should you need to do variable temperature NMR please contact me.
#delete me

Bruker Avance III HD 600

A large cylindrical scientific instrument, possibly an MRI or NMR machine, is situated in a lab room with a ladder to the side and various cables connected to it.

Two large white devices with "Varian" branding and yellow circular elements at the bottom are positioned side by side. A smaller electronic device is placed on top of the left one.

Magnet	Oxford 11.7T 51mm Unshielded
Probles	Type	Nuclei	Sensitivity*	Temp Range	Remarks
	AutoX 5mm (default probe)	¹⁵N-³¹P{¹H-¹⁹F}	¹H: 361 ¹⁹F: # ¹³C: 104 ³¹P: # ¹⁵N: #	-80^oC to 120^oC	pfg / autotune
	Triax Triple Resonance 5mm (12mm RF coil)	¹H{¹³C/¹⁵N}	¹H: # ¹³C: #¹⁵N: #	0^oC to 50^oC	XYZ pfg (console only two channels with z-axis gradient)
	Dual 5mm	¹³C{¹H}	¹H: # ¹³C: #		pfg
	Broadband 10mm	¹⁵N-³¹P{¹H-¹⁹F}
	H/F 4mm Nanoprobe	¹H-¹⁹F			pneumatics and tachometer not installed
Gradiant	z-axis only (60 G/cm)
Computer	Dell 390N running Red Hat Linux 4u3
Software	Varian VNMRJ 2.2C with DOSY package
Additional	Equipped with Varian ProTune, variable temperature bucket, anti-vibration table

[Back to top]

#delete me

Bruker AvanceIII 500

A large scientific instrument with "Bruker 400 UltraShield" label in a lab equipped with cabinets, a desk, computer, and other equipment. The device is behind safety barriers.

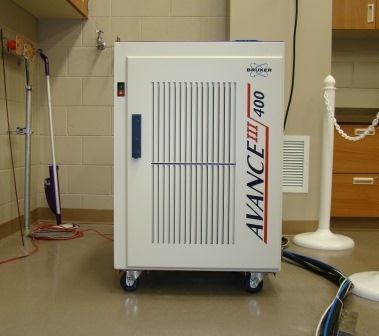

A Bruker Avance III 400 MHz spectrometer, a scientific instrument used for nuclear magnetic resonance (NMR) analysis, is situated in a laboratory.

Magnet	Bruker 9.4T 54mm UltraShield
Channels	2
Probe	Type	Nuclei	Sensitivity*	Temp Range	Remarks
	BBO 5mm	¹⁵N-³¹P{¹H-¹⁹F}	¹H: # ¹⁹F: # ¹³C: # ³¹P: # ¹⁵N: #	-80^oC to 120^oC	pfg / autotune
Gradient	z-axis only (60 G/cm)
Computer	HP running Windows XP
Software	Bruker Topspin 2.1
Additional	Anti-vibration legs

[Back to top]

#delete me

Bruker Avance III HD 400

A large, metal scientific instrument is placed in a room, surrounded by orange cones and a white chain barrier, with cables connecting it to other equipment.

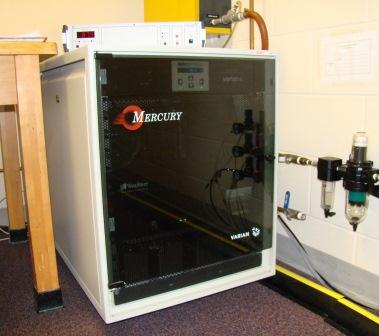

A Mercury Varian spectrometer in a laboratory setting, placed next to a wooden table with various connected tubing and equipment.

Magnet	Oxford 7T 89mm (wide bore) Unshielded
Channels	2
Probe	Type	Nuclei	Sensitivity*	Temp Range	Remarks
	AutoSwitchable 5mm (4-nuc mode)	¹H/¹⁹F/¹³C/³¹P	¹H: 134 ¹⁹F: 117 ¹³C: 41 ³¹P: 76	-80^oC to 130^oC	pfg
Gradient	z-axis only (30 G/cm)
Computer	Dell 390N running Red Hat Linux 4u3
Software	Varian VNMRJ 1.1D
Additional	Variable temperature bucket, anti-vibration legs

[Back to top]

*: sensitivity represents the signal:noise (#:1) calculated by the acquistion software using the standard experimental parameters found in the sn.par files included in VNMRJ. The displayed values are the averages from five acquisitions. The following standards were used:

¹H – 0.1% Ethylbenzene in CDCl₃
¹⁹F – 0.05% Trifluorotoluene in C₆D₆
¹³C – 40% p-Dioxane in C₆D₆
³¹P – 0.0485 M Triphenylphosphate in CDCl₃
¹⁵N – 90% Formamide in DMSO-d₆
